Clamp-All ST 60
Clamp-All ST 60

Clamp-All ST 60

Clamp-All Blue Logo

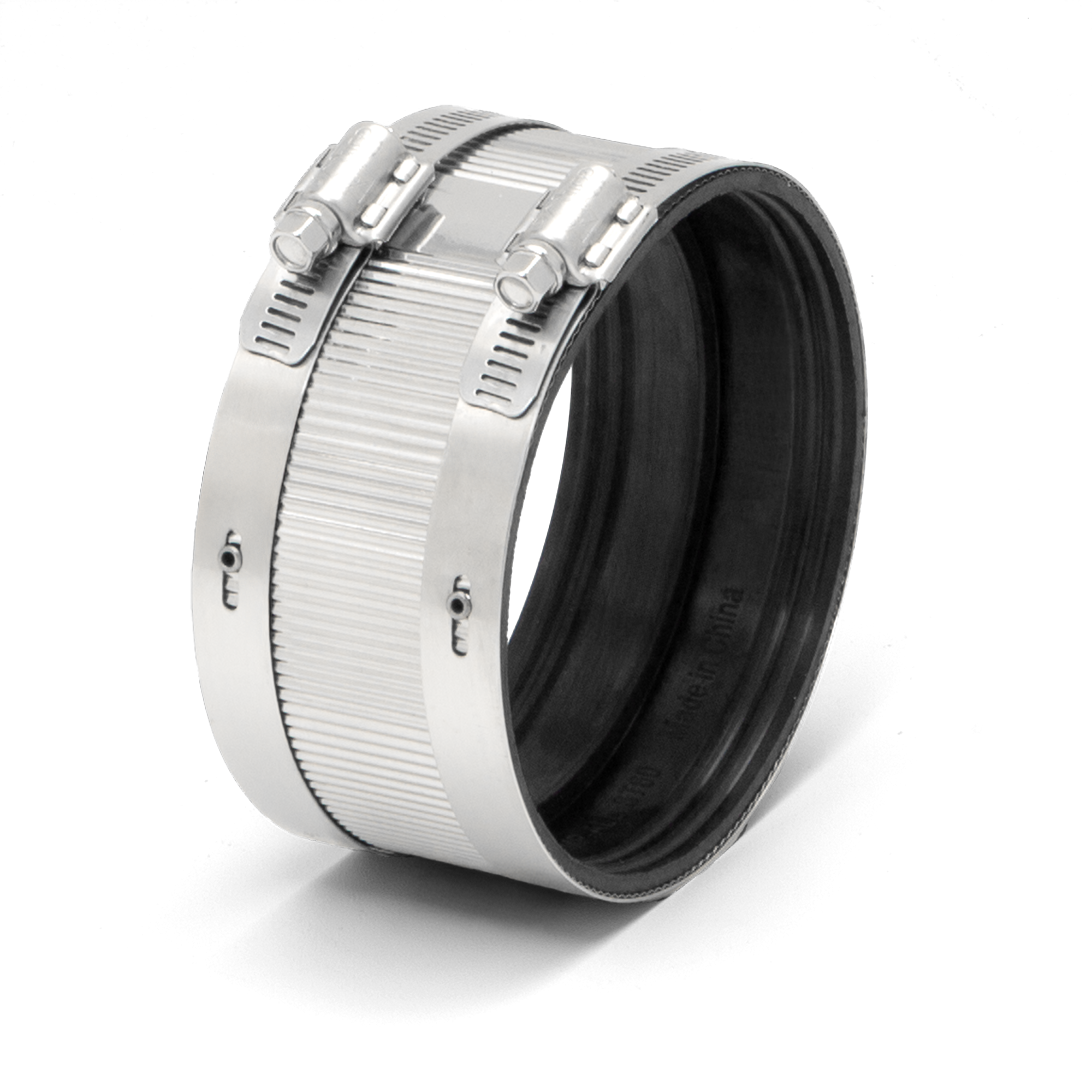

The Clamp-All® ST 60 is a shielded no-hub coupling engineered to connect Cast-Iron no-hub pipes in most drain, waste, and vent (DWV) applications.



Detailed Description

The Clamp-All® ST 60 is a shielded no-hub coupling engineered to connect Cast-Iron no-hub pipes in most drain, waste, and vent (DWV) applications. This coupling features a 34-gauge 301 Stainless Steel shield with 2, 4, or 6 heavy-duty worm drive hose clamps and a dual-bead Neoprene gasket. The ST 60 ensures a secure fit, superior sealing pressure, and vibration resistance. The ST 60 clamps feature a 1/2” wide 301 Stainless Steel band, two-piece riveted housing, and 5/16” hex head screw that that can be tightened to 60 in-lbs. (6.8 N·m) of torque with a manual or powered tool with a hex socket. Available for pipes ranging from 1.5" to 15", the Clamp-All ST 60 is designed for low-pressure, gravity flow applications and is recommended for both above and underground installations. Easy to install and re-use.

Product Specification

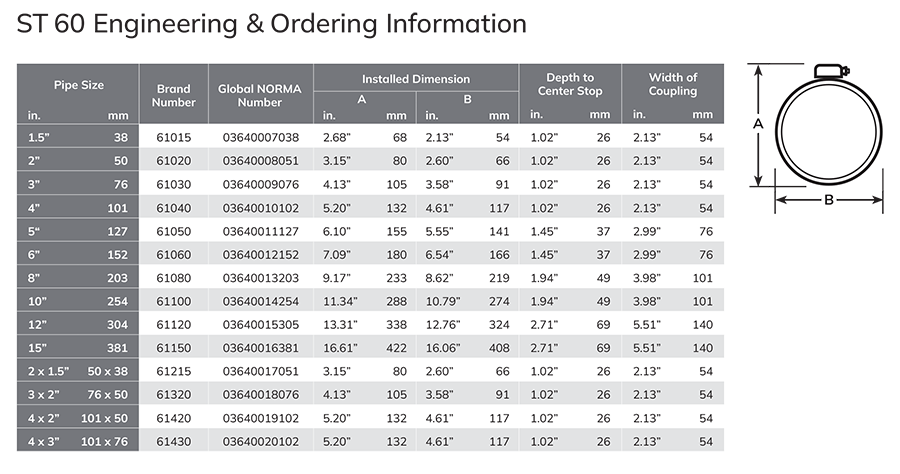

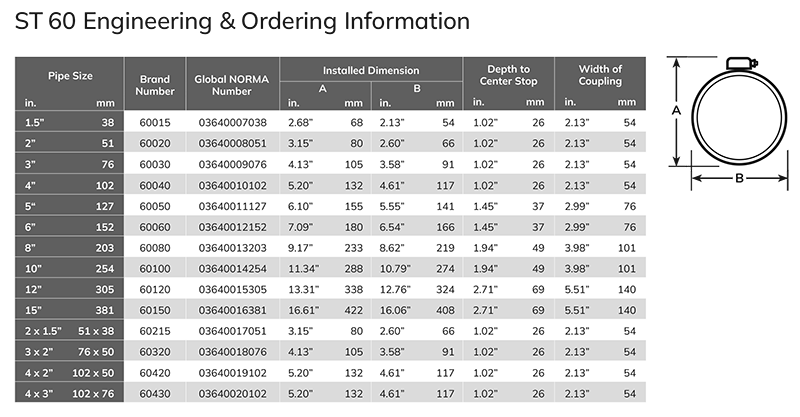

Clamp-all ST 60 order chart

Brand Information

Clamp-All® is the only Pipe Coupling System you will ever need for Drain, Waste, and Vent (DWV) pipe applications. Approved by an independent source for use by the Universal Plumbing Council (UPC), Clamp-All couplings are designed to meet the plumbing industry’s need for heavy-duty and Standard duty commercial grade couplings to join storm and sanitary DWV piping systems, above and below ground. Clamp-All is also third-party tested to Factory Mutual FM 1680 Class I at 15 PSI and conforms to the ASTM A-888 standard for all storm and sanitary DWV piping systems. Clamp-All couplings are the perfect solution for demanding jobs in schools, hospitals, jails, museums, and sports complexes, as well as commercial and industrial projects.
