Commercial Vehicle

Breeze Mini

A lightweight, streamlined clamp generally used in small diameter applications, such as air and fuel lines. The streamlined configuration allows for installation in tight-fitting or difficult-to-reach areas.

• 5⁄16" (7.9mm) Band with Arcial Perforations
• Diameter Range: 7⁄32" – 2½" (5.6mm – 64mm)
• SAE Standard J1508 Type M
• Three-Piece Construction
• Plated 410, 300-Series SS and 316 Stainless Steel

Breeze Power-Seal®

A general purpose automotive and industrial worm-drive hose clamp with arcial perforations for added strength.

• 1/2" Band with Arcial Perforations
• Quadra-Lock Construction
• SAE Standard J1508 Type F
• Diameter Range 7/16" – 7"
• Plated, 410, 300-Series SS & 316 Stainless Steel

Breeze Aero-Seal®

The original perforated stainless steel worm-drive clamp for aircraft and industrial applications.

• 9/16" Band with Arcial Perforations
• Quadra-Lock Construction
• SAE Standard J1508 Type F
• Diameter Range 7/16" – 12 1/4"
• Three Screw Options

Breeze Liner

Liner clamps afford maximum protection to soft hoses while providing a true concentric seal.

• 1/2" Lined Band
• Quadra-Lock Construction
• SAE Standard J1508 Type F
• Larger Sizes have 9/16" Band
• Diameter Range 7/16" – 7"
• Plated, 410 Stainless Steel

Breeze Constant Torque ®

A worm-drive hose clamp that automatically increases or decreases diameter due to changes in temperature.

• 9/16" Band Width
• Diameter Range 9/16"– 3 3/4"
• 410 Stainless Steel Screw
• SAE Standard J1508 Type SLF

Breeze Constant Torque ® Heavy Duty

A breakthrough in clamping technology. A belleville spring mechanism automatically increases or decreases the clamp diameter due to changes in operational or environmental temperatures to eliminate "cold flow" leaks.

Features an extended inner liner which protects all types of hoses from damage and helps to maintain consistent sealing pressure.

• Extended Inner Liner
• Constant-Tension Performance
• SAE Standard J1508 Type SLF & SLHD
• Diameter Range 1" – 9 1/8"
• Plated or 410 Stainless Steel Screw

Breeze T-Bolt

A stainless steel clamp performance-engineered for long-term durability and a wide variety of applications.

• 3/4" Band Width
• Floating Bridge
• SAE Standard J1508 Type TB
• Diameter Range 1 1/4" – 8 13/16"
• Plated or 300-Series SS Bolt

Breeze T-Bolt Spring Loaded

A constant-tension clamp with a spring designed for a variety of automotive, industrial, and marine applications.

• 3/4" Band Width
• Floating Bridge
• Standard-Duty Spring
• SAE Standard J1508 Type SLTB
• Diameter Range 1 3/4" – 7 13/16"

Breeze T-Bolt Heavy Duty Spring Loaded

A constant-tension clamp with a spring designed for a variety of automotive, industrial, and marine applications.

• 3/4" Band Width
• Floating Bridge
• Heavy-Duty Spring
• SAE Standard J1508 Type SLTB
• Diameter Range 2 1/16" – 8 5/8"

Breeze Hi-Torque ™

The Hi-Torque is the world's strongest worm-gear clamp and features all-stainless-steel construction.

• 5/8" Band Width
• Inner Liner Available
• SAE standard J1508 Type HD
• Diameter Range 1" – 9 1/8"
• 410, 300-Series SS & 316 Stainless Steel Screw

Breeze Make-A-Clamp

A maintenance "clamp system" that allows you to make any size 100% stainless steel worm-drive clamp.

• 1/2" Wide Continuous Roll of Banding Material
• 9/16" Wide Fasteners
• 100% Stainless Steel
• Custom Diameter Ranges
• 410 Stainless Steel Screw

ABA Original S20(W2)

An embossed worm-drive hose clamp with a one-piece housing, and an embossed band with rolled edges.

• Embossed Band with Rolled Edges
• Innovative Jointless Housing
• SAE Standard J1508 Type FE
• Diameter Range 15mm – 307mm
• Slotted Hex-Head Screw
• 12mm Band Width
• Iconic Blue Housing

ABA Original S40(W4)

An embossed worm-drive hose clamp with a one-piece housing, and an embossed band with rolled edges.

• Embossed Band with Rolled Edges
• Innovative Jointless Housing
• SAE Standard J1508 Type FE
• Diameter Range 15mm – 307mm
• Slotted Hex-Head Screw
• 12mm Band Width
• Stainless Steel Housing

ABA Safe™ W1

A constant-tension worm-drive clamp that protects soft hoses against damage.

• 12mm Band Width
• Concave Liner to Protect Soft Hoses
• Innovative Jointless Housing
• Diameter Range 32mm – 112mm
• Slotted Hex-Head Screw
• 301 Stainless Steel Cold Rolled Liner
• Iconic Blue Housing

ABA Safe™ W4

A constant-tension worm-drive clamp that protects soft hoses against damage.

• 12mm Band Width
• Concave Liner to Protect Soft Hoses
• Innovative Jointless Housing
• Diameter Range 32mm – 112mm
• Slotted Hex-Head Screw
• 301 Stainless Steel Cold Rolled Liner
• Stainless Steel Housing

ABA Nova W1

A non-perforated worm-drive hose clamp with a rolled-edge band that is an ideal choice for smaller dimension hoses.

• Embossed 9mm Band with Rolled Edges
• Innovative Jointless Housing
• SAE Standard J1508 Type FE
• Diameter Range 8mm – 75mm

ABA Nova All Stainless S50 (W5)

A non-perforated worm-drive hose clamp with a rolled-edge band that is an ideal choice for smaller dimension hoses.

• Embossed 9mm Band with Rolled Edges
• Innovative Jointless Housing
• SAE Standard J1508 Type FE
• Diameter Range 8mm – 20mm
• All 316 Stainless Steel
• Slotted Hex-Head Screw

Series C-Style (0˚profile)

Craig Assembly C-Style  “push and seal” plastic quick connectors are ideal for joining lines used to transport media in cooling water, glycol, and water applications. They also are excellent in charged-air systems. Designed for the VDA standard spigot. Feature a positive retainer ring mechanism for tight locking seal and available with hose barb stem for use with aftermarket hose and clamps.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 0˚profile (Straight)
• Inside Diameters: (12mm – 50mm)

Series C-Style (45° Profile)

CA Series C-Style  “push and seal” plastic quick connectors are ideal for joining lines used to transport media in cooling water, glycol, and water applications. They also are excellent in charged-air systems. Designed for the VDA standard spigot. Feature a positive retainer ring mechanism for tight locking seal and available with hose barb stem for use with aftermarket hose and clamps.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 45˚ standard profile
• Inside Diameters: (12mm – 50mm)

Series C-Style (90˚ profile)

Craig Assembly C-Style  “push and seal” plastic quick connectors are ideal for joining lines used to transport media in cooling water, glycol, and water applications. They also are excellent in charged-air systems. Designed for the VDA standard spigot. Feature a positive retainer ring mechanism for tight locking seal and available with hose barb stem for use with aftermarket hose and clamps.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 90˚ standard profile
• Inside Diameters: (12mm – 50mm)

Series SAE-Style (0˚ profile)

Craig Assembly SAE-Style Quick Connector are designed to connect media carrying lines on automobiles and have been developed for fuel system applications. Used for both line-to-line and line-to-device connections. Available with single hose barb for use with aftermarket hose and clamps. Features include an internal retainer mechanism for tight locking seals.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 0˚ Straight profile
• Outside Spigot Diameters: 5⁄8" and ¾"

Series SAE-Style (45˚ profile)

Craig Assembly SAE-Style Quick Connector are designed to connect media carrying lines on automobiles and have been developed for fuel system applications. Used for both line-to-line and line-to-device connections. Available with single hose barb for use with aftermarket hose and clamps. Features include an internal retainer mechanism for tight locking seals.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 45˚ standard profile
• Outside Spigot Diameters: 5⁄8" and ¾"

Series SAE-Style (90° Profile)

CA Series SAE-Style Quick Connector are designed to connect media carrying lines on automobiles and have been developed for fuel system applications. Used for both line-to-line and line-to-device connections. Available with single hose barb for use with aftermarket hose and clamps. Features include an internal retainer mechanism for tight locking seals.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 90˚ standard profile
• Outside Spigot Diameters: 5⁄8" and ¾"

NORMACLAMP® TORRO®

A non-perforated worm-drive hose clamp ideally suited to applications with high mechanical loads

• 7.5mm – 12mm Band Widths
• Three-Piece Construction
• Diameter Range 8mm – 160mm
• Aluzinc, Galvanized & Other Stainless Steels

NORMACLAMP® TORRO® WF

A constant-tension clamp equipped with a spring insert on the inside of the clamp band.

• 9mm & 12mm Band Widths
• Three-Piece Construction
• Diameter Range 8mm – 110mm
• Aluzinc, Galvanized & Other Stainless Steels
• Constant-Tension Spring Insert

NORMACLAMP® GBS

Heavy-Duty clamp, ideal for fastening compressed air hoses with high degrees of hardness or plastic/steel reinforcement.

• 18mm – 30mm Band Widths
• Exceptionally High Tensile Force
• Diameter Range 17mm – 304mm
• Aluzinc, Galvanized & Other Stainless Steels
• Hollow Trunnions

NORMACLAMP® COBRA

One-piece, bolt-free, low-profile "crimp" style connectors.

• 7mm & 8mm Band Widths
• Bolt-Free Construction
• All 304 Stainless Steel
• Diameter Range 8mm – 32mm

NORMAQUICK® PS3

NORMAQUICK® PS3 “push and seal” plastic quick connectors are ideal for joining lines used to transport media in cooling water and heating applications. They also are excellent in charged-air systems. Designed for the VDA standard spigot.

• Materials: Injection Molded Thermoplastics, EPDM O-rings
• 0˚,45˚, and 90˚ standard profiles
• Inside Diameter Range: 8mm-50mm

NORMAQUICK® S

NORMAQUICK® S are SAE J2044 Quick Connectors. S plastic quick connectors are designed to connect media carrying lines on automobiles and have been developed for fuel system applications. Used for both line-to-line and line-to-device connections.

• Materials: Injection Molded Thermoplastics, EPDM O-rings
• 0˚,45˚, and 90˚ standard profiles
• Outside Spigot Diameters: 1/4"- 5/8" (8mm, 10mm,14mm)

NORMAQUICK®Twist II

NORMAQUICK® Twist II are designed to connect plastic air intake, charge air and cooling water system pipes in order to get leak-proof connections. By using the TWIST II connector system, you can combine your design with plastic, aluminum or steel tubes. Features  robust and clear locking features with a click function to ensure a correct lock.

• Temperature resistance of up to 180°
• Material: Polyamide 6.6 with 30% to 50% glass fiber, EPDM O-Rings
• 0˚, and 90˚ standard profiles
• Application-specific sizes

NORMAQUICK® V2

NORMAQUICK® V2 plastic quick connectors are an ideal means to connect media carrying lines as well as ventilation and exhaust lines in the automotive industry. Used for both line-to-line and line-to-device connections.

• Material: Injection Molded Thermoplastics, EPDM O-Rings
• 0˚, and 90˚ standard profiles/ over 200 custom profiles
• Inside Spigot Diameters: 4mm – 33mm

R.G.Ray® Mini- Series T-Bolt

R.G.Ray® mini- Series T-Bolts feature a A 9/16"  stainless steel band wiht plated steel bridge, M5 or #10 T-bolt and hardware.   Designed for a wide variety of automotive, industrial and marine applicatons.

• 9/16” (14.2mm) band
• M5 or #10 T-Bolt and hardware

R.G.Ray® 650-Series T-Bolt

R.G.Ray® 650-Series T-Bolt has a heavy duty, high strength design with a 3/4 inch wide stainless steel band and shoe with a 1/4" plated steel T-bolt and hardware.   Designed for a wide variety of automotive, industrial and marine applicatons.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• Diameter Range:1  3/8" – 12 3/8" (30 mm – 312mm)
• SAE Standard J1508 Type TB

R.G.Ray® 700-Series T-Bolt

R.G.Ray® 700-Series T-Bolt has a heavy duty, high strength design with a 3/4 inch stainless steel band with floating bridge, a 1/4 inch T-bolt and hardware. Designed for a wide variety of automotive, industrial and marine applicatons.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• Diameter Range: 1  1/2" – 12 3/8" (43mm – 312mm)
• SAE Standard J1508 Type TB

R.G.Ray® 935-Series T-Bolt

R.G.Ray® 935-Series T-Bolt has a heavy duty, high strength all stainless steel design with a 3/4 inch stainless steel band with shoe, a 1/4 inch T-bolt and hardware. Designed for a wide variety of automotive, industrial and marine applicatons.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• Diameter Range: 1  3/8" – 12 3/8" (30 mm – 312.7mm)
• SAE Standard J1508 Type TB

R.G.Ray® 853-Series T-Bolt

R.G.Ray® 853-Series T-Bolt has a heavy duty, high strength all stainless steel design with a 3/4 inch stainless steel band with floating bridge, a 1/4 inch T-bolt and hardware. Designed for a wide variety of automotive, industrial and marine applicatons.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• Diameter Range: 1  3/8" – 12 3/8" (30 mm – 312.7mm)
• SAE Standard J1508 Type TB

R.G.Ray® mini Flex-Seal

R.G.Ray® mini Flex-Seal Clamps feature 9/16 inch wide stainless steel band with plated steel bridge, M5  T-bolt and hardware. Designed for a wide variety of automotive, industrial and marine applicatons. Spring Design adds constant tension performance to maintain consistent sealing pressure.

• 9/16” (14.2mm) band
• Diameter Range: 1  1/4" – 4 7/8" (30 mm – 123.7mm)

R.G.Ray® 667-Series Flex-Seal™

R.G.Ray® 667-Series Flex-Seal™ hose clamps feature 3/4 inch wide stainless steel with a floating bridge, 1/4 inch plated steel T-bolt and hardware. Standard Spring Design adds constant tension performance.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• Diameter Range: 1  3/8" – 12 3/8" (30 mm – 312.7mm)
• SAE Standard J1508 Type SLTB

R.G.Ray® 848-Series Flex-Seal™

R.G.Ray® 848-Series Flex-Seal™ Heavy Duty hose clamps feature 3/4 inch wide stainless steel with a floating bridge, 1/4 inch plated steel T-bolt and hardware. Includes special long travel spring to accommodate larger changes in joint diameters. Spring Design adds constant tension performance.

• 3/4” (19mm) band
• 1/4” (6.4 mm) Plated Steel T-bolt
• Diameter Range: 1 1/2" – 14" (43 mm – 357mm)
• SAE Standard J1508 Type SLTB

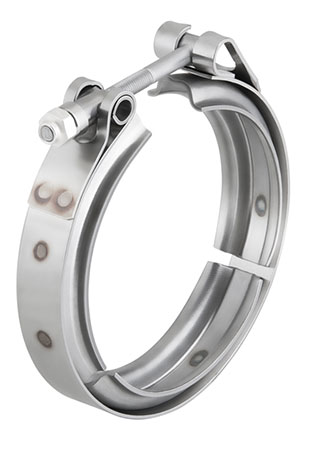

R.G.Ray® General Purpose V-Insert

R.G.Ray® General Purpose V-Insert V-Band clamps can develop high axial clamping force with high burst pressure capability. V-Inserts are welded to a flexible outer band. Typical appllications include heavy duty diesel engine exhaust and turbochargers.

• Diameter Range: 2" and larger
• Fasteners: #10, 1/4", 5/16", 3/8" or metric
• Corrosive resistant and specialty steels

R.G.Ray® Quick Connect V-Insert

R.G.Ray® Quick Connect V-Insert V-Band clamps can develop high axial clamping force with high burst pressure capability. Latch allows the clamp to installed without removing the nut. V-Inserts are welded to a flexible outer band. Typical appllications include heavy duty diesel engine exhaust and turbochargers.

• Diameter Range: 2" and larger
• Corrosive resistant and specialty steels

R.G.Ray® Quick Release V-insert

R.G.Ray® Quick Release V-Insert V-Band clamps can develop high axial clamping force with high burst pressure capability. Pivoting latch allows the clamp to be opened with minimal rotation of the nut.  V-Inserts are welded to a flexible outer band. Typical appllications include filters, mixers and separators.

• Diameter Range: 2" and larger
• Fasteners: #10, 1/4", 5/16",  or metric
• Corrosion and heat resistant steels

R.G.Ray® Uni-Flex V-Clamp

R.G.Ray® Uni-Flex V-Clamps are a cost-effective continuously formed metal band having two 180˚ V-retainers and a hinge point for flexibility. Typical applications include turbochargers and diesel exhaust connections.

• Diameters: 4" to 9"
• Fasteners: , 1/4"  or M6
• Corrosive resistant  steels

R.G.Ray® Roll Formed V-Clamp

R.G.Ray® Roll Formed V-Clamps have a conitnous V-retainer and partial outer band, compact profile to fit flanges having limited clearance. Applications include turbochargers, and particulate filters.

• Diameters: 3 1/2" to 12"
• Corrosive resistant steels

R.G.Ray® Flex Roll Formed V-Clamp

R.G.Ray® Flex Roll Formed V-Clamps have a partial outer band welded to two 180˚ V-retainers with an added flexible band segment (hinge) connection them. Applications typically include pumps and swimming pool filtration systems.

• Diameter Range: 3 1/2" to 12"
• Fasteners: 1/4"
• Corrosion and heat resistant steels

R.G.Ray® E-Series V-Clamp

R.G.Ray® E-Series V-Clamps are a low pressure and an economical continuously formed metal band having two 180˚ V-retainers and a hinge point. The spot weld free construction enhances corrosion resistance. Applications include ducting, air and exhaust connections.

• Diameter Range: 3/4" to 7"
• Fasteners: , 1/4", 5/16", or metric
• Corrosion and heat resistance steels

R.G.Ray® V-Coupling

R.G.Ray® V-Couplings feature two V-retainers connected with a hinge for easy installation. The spot weld free construction enhances corrosion resistance. Applications inlclude small turbochargers, EGR systems, and exhaust connections.

• Diameter Range: 2" to 7"
• Fasteners: 6mm
• Corrosion and heat resistant steels

FiveStar 27-Series Barrel Band Clamp

FiveStar 27-Series Barrel Band Clamps have a heavy duty, high strength, 3/4 inch stainless steel band with an M6 socket head cap screw, barrel nut and trunnion hardware for a sleek, low-profile design. Designed for a wide variety of automotive, commercial vehicle, and industrial applications.

• Diameter Range: 1" – 13.75" (25.4 mm – 349.25mm)
• .025"x 3/4” stainless band
• M6-1.0mm hex screw, barrel nut and trunnion
• CRS, zinc plated hardware

FiveStar Quick-Release V-Clamp

FiveStar Quick-Release V-Clamps are designed with high quality v-inserts welded to a quick-release outer band to allow for quick assembly and ease of use in equipment that requires constant service. Available with or without the knob.

• Diameter Range: 1.09" and larger
• Various band thickness available
• 1/4"-28 hardware
• Corrosion resistant steels
• 1/4"-28 plastic knob with brass insert or nut available

FiveStar Spring-Loaded Barrel Band Clamp

FiveStar 27-MSP Spring-Loaded Barrel Band Clamps have a heavy duty, high strength design with a 3/4" stainless steel band. The spring-loaded design combines the ability to constantly seal in hot and cold temperatures and/or varying pressure with a lower profile design. Full-round edges to prevent hose damage. Designed for a wide variety of automotive, commercial vehicle, and industrial applications.

• .025" x3/4" stainless band
• M6-1.0mm hex screw, barrel nut and trunnion
• CRS, zinc plated hardware
• Diameter Range: 1" – 13.75" (25.4 mm – 349.25mm)

FiveStar Heavy Duty Barrel Band Clamp

FiveStar 27-MHD Series Heavy Duty Barrel Band Clamps have a .040"x3/4" stainless steel band with an M6 hex screw, barrel nut and trunnion hardware for a sleek, low-profile, yet heavy duty clamp. Designed for a wide variety of automotive, commercial vehicle, and industrial applications.

• .040" x 3/4" stainless band
• M6 hex screw
• Diameter Range: 1" – 13.75" (25.4 mm – 349.25mm)

FiveStar 200 Series T-Bolt Clamp

FiveStar 200-Series T-Bolt has a heavy duty, high strength design with a 3/4" stainless steel band with a shoe and 1/4"-28 hardware that's available in zinc plated or all stainless versions. Designed for a wide variety of automotive, industrial and marine applications.

• .025" x 3/4" stainless band
• 1/4”-28 Plated Steel T-bolt
• Diameter Range: 1" – 13.88" (25.4 mm – 352.55mm)

FiveStar 250 Series Spring-Loaded T-Bolt

FiveStar 250-Series Spring-Loaded T-Bolt has a heavy duty, spring-loaded design to maintain constant tension in varying conditions. Featuring a 3/4" stainless steel band with a shoe and 1/4"-28 hardware that's available in zinc plated or all stainless versions. Designed for a wide variety of automotive, industrial and marine applications.

• .025" x 3/4" stainless band
• 1/4"-28 Plated Steel T-Bolt
• Diameter Range: 2.06"- 8.56" (51.56mm - 217.42mm)

FiveStar Quick-Release T-Bolt Mounting Clamp

FiveStar Quick-Release T-Bolt Mounting Clamps feature a 3/4" wide stainless steel band with 1/4"-28 zinc plated hardware and bracket. Available with a wing nut or nylon insert lock nut. Designed for a wide variety of automotive and industrial applications.

• .025"-.75" stainless band
• 1/4"-28 plated t-bolt and nut
• 1/4"-1" stainess latch
• .080"-1.13" stainless bracket
• Diameter Range: 2.19" -9.37" (55.63 mm - 238.0mm)

FiveStar General Purpose V-Clamp

Five Star General Purpose V-Clamps are high quality V-inserts welded to a band clamp with full round edges. Typically used to join or seal flanged tubing, piping or containers in heavy duty diesel engines, turbochargers, or industrial applications.

• Diameter Range: 1.09" and larger
• 1/4" or 5/16" hardware available
• Corrosion  resistant steels

ABA 335 Merchandiser

The ABA 335 Merchandiser is a dispenser featuring our most commonly ordered ABA hose clamp sizes.

• Wall Hanging
• Aluzinc

ABA 244 Merchandiser

The ABA 244 Merchandiser is a dispenser featuring our most commonly ordered clamp sizes.

• Wall Hanging
• Aluzinc

Super-Seal

A breathrough constant tension clamp with dynamic compensation and ultra-secure sealing.
Worm-Drive Closure
Two Screw Options
Recommended Torque 90+/-5 in. -lbs.
Diameter Range 1.41" to 4.57" (36mm - 116mm)

Super-Seal HD

A breakthrough constant tension clamp with dynamic compensation and ultra-secure sealing.
Worm-Drive Closure with proven Belleville Washer Spring technology for added sealing strength

Two Screw material Options

Recommended Torque 90+/-5 in. -lbs.
Diameter Range 1.41" to 4.57" (36mm - 116mm)
