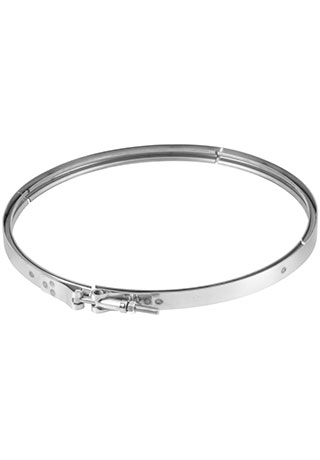

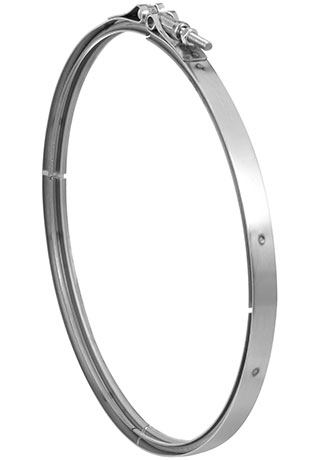

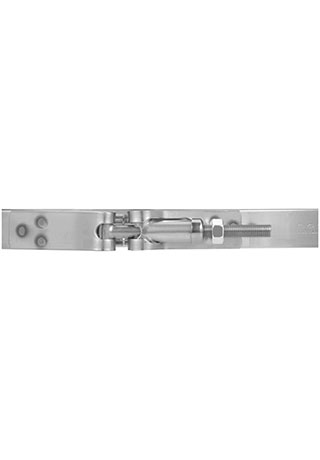

General Purpose V-Insert



R.G.Ray General Purpose V-Insert clamps provide high axial clamping force with high burst pressure capability. Typical applications include heavy-duty diesel engine exhaust and turbochargers.

Passenger Vehicle;Commercial Vehicle

Detailed Description

The General Purpose V-Insert clamps are offered in a 2" and larger diameter range. Made from corrosion resistant and specialty steels, the clamp includes the following fastener options: #10, 1/4", 5/16", 3/8". This clamp is ideal for pumps, diesel engines, EGR systems, truck exhaust connections, turbochargers and other flanged joints.

Product Specification

Nominal Diameter / Clamp Size:
Number of Inserts:
Installation Torque (In Lb):
100 in. lbs./11.3Nm
Insert Angle (degrees):
Insert Thickness (Inches and MM):
Insert Apex Width (Inches and MM)):
Insert Depth (Inches and MM):
Band Thickness (Inches and MM):
Band Width (Inches and MM):
Material Type:
Stainless Steel
Steel Type Bolt/Screw:
Steel Type Band:
Steel Type Insert:
301 302 304

Brand Information

R.G.RAY has been a world-leading supplier of heavy-duty clamps for almost 50 years with its products used in pump/filtration, aircraft, commercial vehicle and industrial applications. The full line of R.G.Ray heavy-duty engineered clamps include T-Bolts and FLEX SEAL hose clamps, V-Band and V-Retainer clamps, special strap assemblies and a broad variety of special application clamps. Consistently designed to meet customer requirements even for the most challenging applications, R.G.RAY products are manufactured to exact OE specifications and their application-driven approach to product design for all R.G.Ray clamps has led to global recognition. Even after five decades, the R.G.Ray brand stands for superior quality and innovative technology that meets the most stringent standards.
