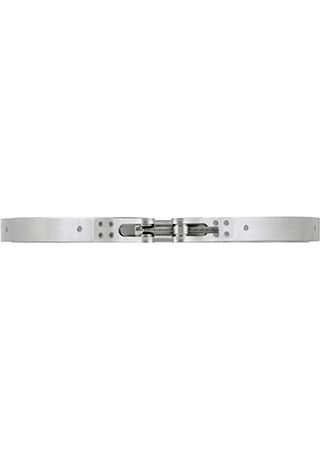

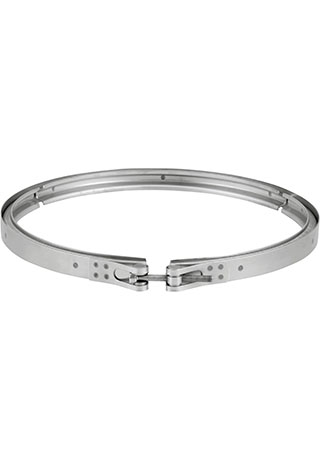

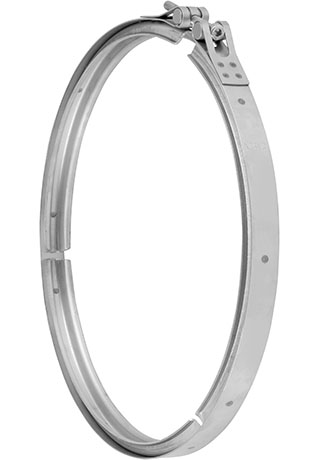

General Purpose V-Insert

#03730734365

R.G.Ray General Purpose V-Insert clamps provide high axial clamping force with high burst pressure capability. Typical applications include heavy-duty diesel engine exhaust and turbochargers.



Detailed Description

The General Purpose V-Insert clamps are offered in a 2" and larger diameter range. Made from corrosion resistant and specialty steels, the clamp includes the following fastener options: #10, 1/4", 5/16", 3/8". This clamp is ideal for pumps, diesel engines, EGR systems, truck exhaust connections, turbochargers and other flanged joints.

Product Specification

Nominal Diameter / Clamp Size:
14.35"/364.49mm
Number of Inserts:
3
Installation Torque (In Lb):
U/K
Insert Angle (degrees):
U/K
Insert Thickness (Inches and MM):
U/K
Insert Apex Width (Inches and MM)):
U/K
Insert Depth (Inches and MM):
U/K
Band Thickness (Inches and MM):
.063"/1.6mm
Band Width (Inches and MM):
.876"/22.25mm
Material Type:
U/K
Steel Type Bolt/Screw:
U/K
Steel Type Band:
U/K
Steel Type Insert:
U/K

Brand Information

R.G.RAY has been a leading supplier of heavy-duty engineered clamps for the commercial and passenger vehicle industries for more almost 50 years. With a focus on specialty products that include heavy-duty T-Bolt and FLEX SEAL hose clamps, V-Band and V-Retainer clamps, special strap assemblies and a broad variety of special application clamps, we manufacture R.G.RAY products to exacting OE specifications that consistently meet customer requirements for the most challenging applications.
