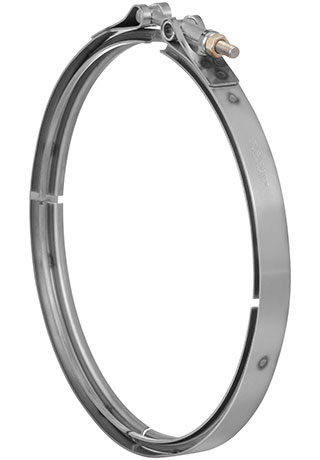

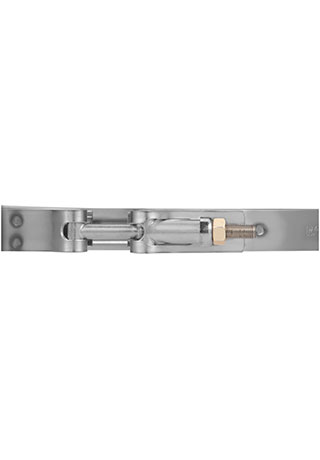

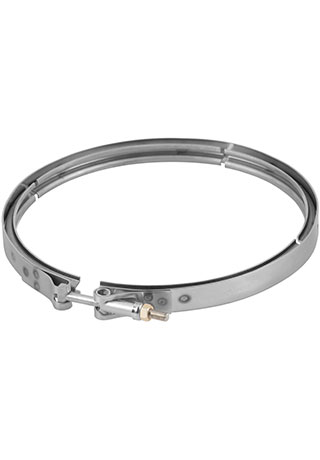

General Purpose V-Insert

#03730002267

R.G.Ray

R.G.Ray General Purpose V-Insert clamps provide high axial clamping force with high burst pressure capability.Typical appllications include heavy duty diesel engine exhaust and turbochargers.



Detailed Description

The General Purpose V-Insert V-Band clamp is offered in a 2" and larger diameter range. Made from corrosion resistant and specialty steels, the clamp includes the following fastener options: #10, 1/4", 5/16", 3/8". This clamp is ideal for pumps, diesel engines, EGR systems, truck exhaust connections, turbochargers and other flanged joints.

Product Specification

Nominal Diameter / Clamp Size:
10.5"/266.70mm
Number of Inserts:
4
Installation Torque (In Lb):
50 in. lbs./5.6Nm
Insert Angle (degrees):
40°
Insert Thickness (Inches and MM):
.08"/2.03mm
Insert Apex Width (Inches and MM)):
.4"/10.16mm
Insert Depth (Inches and MM):
.281"/7.14mm
Band Thickness (Inches and MM):
.062"/1.57mm
Band Width (Inches and MM):
1.0"/25.4mm
Material Type:
Stainless Steel
Steel Type Bolt/Screw:
Carbon Steel
Steel Type Band:
409
Steel Type Insert:
409
