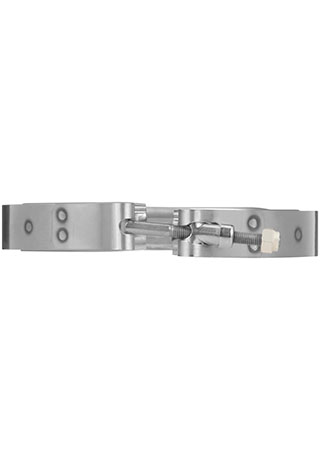

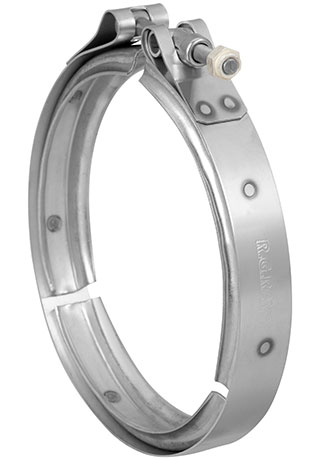

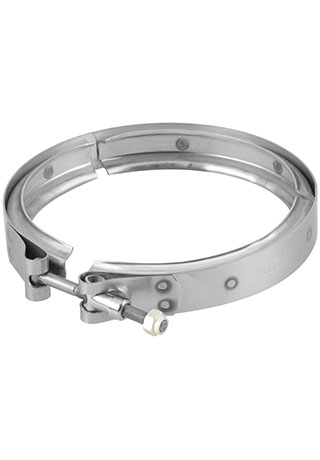

General Purpose V-Insert


R.G.Ray General Purpose V-Insert clamps provide high axial clamping force with high burst pressure capability.Typical appllications include heavy duty diesel engine exhaust and turbochargers.

Detailed Description

The General Purpose V-Insert V-Band clamp is offered in a 2" and larger diameter range. Made from corrosion resistant and specialty steels, the clamp includes the following fastener options: #10, 1/4", 5/16", 3/8". This clamp is ideal for pumps, diesel engines, EGR systems, truck exhaust connections, turbochargers and other flanged joints.

Product Specification

Nominal Diameter / Clamp Size:
Number of Inserts:
Installation Torque (In Lb):
50 in. lbs./5.6Nm
Insert Angle (degrees):
Insert Thickness (Inches and MM):
Insert Apex Width (Inches and MM)):
Insert Depth (Inches and MM):
Band Thickness (Inches and MM):
Band Width (Inches and MM):
Material Type:
Stainless Steel
Steel Type Bolt/Screw:
Steel Type Band:
Steel Type Insert:
301 302 304

Brand Information

R.G.RAY has been a leading supplier of heavy-duty engineered clamps for the commercial and passenger vehicle industries for more almost 50 years. With a focus on specialty products that include heavy-duty T-Bolt and FLEX SEAL hose clamps, V-Band and V-Retainer clamps, special strap assemblies and a broad variety of special application clamps, we manufacture R.G.RAY products to exacting OE specifications that consistently meet customer requirements for the most challenging applications.
